Mobile scissor lift platform pressure system is through the hydraulic oil pressure transmission to achieve the lifting function, lift the scissor mechanical structure, with higher stability, large working platform and high carrying capacity, so that the work range is wider.


It makes the aerial work more effective and safer. Next we take you to understand the transmission principle and the scope of application.

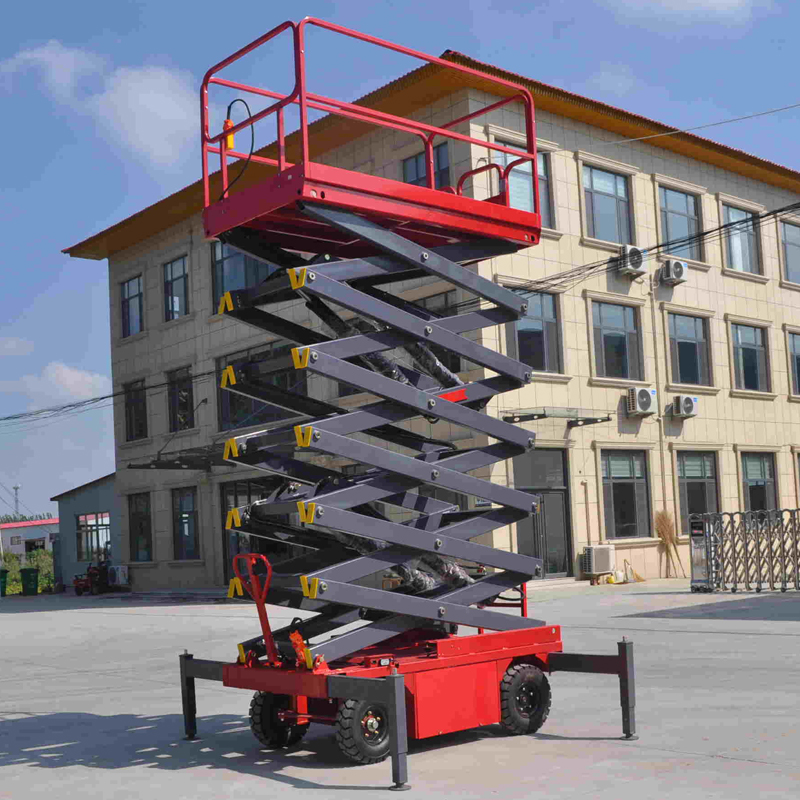

Mobile scissor lift platform is a lift, consisting of walking mechanism, hydraulic mechanism, electric control mechanism and support mechanism. The hydraulic oil is formed by the vane pump to form a certain pressure.


Oil filter, explosion-proof electromagnetic reversing valve, throttle valve, hydraulic control check valve and balance valve into the lower end of the liquid cylinder, so that the liquid cylinder piston moves upward to lift the weight.


The oil returning from the upper end of the liquid cylinder returns to the fuel tank through the explosion-proof electromagnetic reversing valve, and the rated pressure is adjusted through the relief valve, and the pressure gauge reading value is observed through the pressure gauge.


The mobile scissor lift platform includes a base, a carrying platform, scissor type support arms on both sides of the base, a drive mechanism for driving the unfolded or folded support arms, and a limit set on the base for protecting the base.


The unfolding state of the support arm the component, wherein the limiting component includes a limiting bar located on one side of the support arm and a movable limiting block set on the limiting bar. When the support arm is expanded to the desired position height, the limit bar is actuated. The block moves along the length of the limit bar toward the support arm and moves at the end of the base to interfere with the end.


Mobile scissor lift platform is widely used in various industrial enterprises and production lines, such as automobile, container, mold making, wood processing, chemical filling, etc., to meet the lifting needs of different working heights, and can be equipped with various types of tables (such as ball, roller, turntable), steering, tilting, telescoping), with various control methods (transfer, linkage, explosion-proof), with stable, accurate lifting, frequent starting It has the characteristics of stable, accurate lifting, frequent starting, heavy load, etc., which effectively solve the difficulties of all kinds of lifting operations. In the industrial enterprise, make the production work easily and freely.
